71097 3CFM 1/4 HP Vacuum Pump HVAC Refrigeration AC Manifold Gauge

A convenient kit use to diagnose and service a vehicle’s A/C system. This A/C Manifold Gauge Set can be used to test. evacuate and fill automotive or household air conditioning systems. With a carrying tote convenient storage and easy transportation.

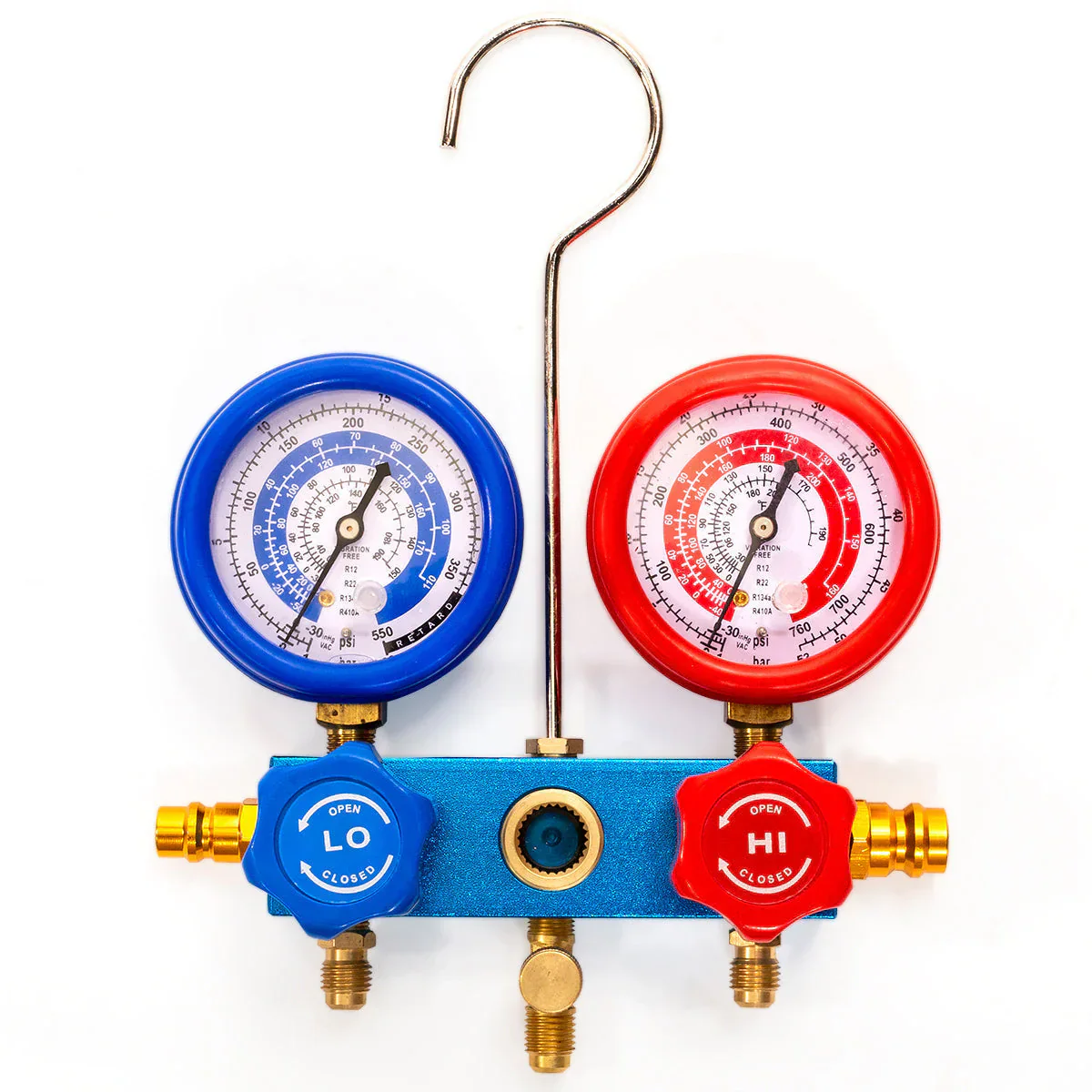

Manifold Gauge Features:

Heavy duty hook for hanging the manifold gauge in place
No-flutter gauge design
Solid Brass connections
36″ Color coded charging hose
Designed to meet 1/4″ Standard SAE requirement for refrigerant permutation
Ideal for R12. R22. R134a. R410a
Quick disconnect couplers for high/low fittings included

Technical Specifications:

Operating Pressure: 600 PSI
Burst Pressure: 3000 PSI
Manifold Blue Gauge (low): 0-150 PSI
Gauge Reading: R12. R22. R134a. R410a
Hose Length: 6 Feet

Vacuum Pump Features:

Easy To See Oil Level Window – Oil viewing windows allows you to monitor oil quality and levels
Easy To Maintain – Oil drain plug located at bottom of oil reservoir
Easy To Operate – On/off switch
Turn On & Go – Easy start & maintenance free
Efficient Cooling – Built-in high volume cooling fan for extended use
Portability – Non slip contoured carrying handle
Safety – Exhaust port with cap

Technical Specifications:

Free Air Displacement: 3 CFM
Microns Rating: 75 microns (10pa)
Power: 1/4HP
Voltage 110V/60hz
RPM: 1400
Ultimate Vacuum: 5pa
Oil Capacity: 220mL
Inlet Port: 1/4″ Flare

Package Content:

Manifold Gauge Kit
Vacuum Pump
Carrying Tote
